Ultrasonic Sensor *
ADD-ON COMPONENT: The SparkFun Photon Kit does NOT include an ultrasonic sensor as a standard component. However, SparkFun sells the HC-SR04 Ultrasonic Sensor, which can be easily connected to a Photon. Your teacher may have added this sensor to your kit.
An ultrasonic sensor uses sonar to measure the distance to an object, similar to how bats and dolphins use echolocation for navigation and hunting.

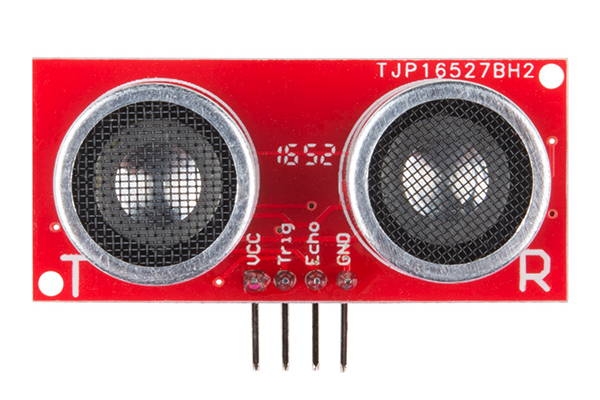

Ultrasonic Sensor (HC-SR04)
An ultrasonic sensor has a transmitter (i.e., speaker) that produces high-frequency sound (beyond the range of human hearing). The sensor also has a matching receiver (i.e., microphone) that detects the echo of the high-frequency sound when it reflects back from an object. By measuring how much time it takes for the echo to arrive, you can calculate the distance between the sensor and the object.
The HC-SR04 ultrasonic sensor measures distances in a narrow cone of about 15° directly in front of the sensor. This sensor can detect obstacles located up to 400 cm away (about 13 feet). The sensor measurements are very accurate, within about 3 mm (about 0.1 inch) of the actual distance.

How to Connect Sensor

The HC-SR04 ultrasonic sensor has 4 pins for plugging into a breadboard. Each pin is labeled on the sensor's circuit board.
To connect the ultrasonic sensor to your Photon using the breadboard, you will need:
  • Ultrasonic Sensor (HC-SR04)
  • 4 jumper wires (use different colors to help identify them)
Ultrasonic Sensor
Photon Pin
VCC
5V through VIN or V-USB
Trig
any I/O pin
Echo
any I/O pin
GND
GND
5V REQUIRED: The ultrasonic sensor requires 5V of power to operate.
  • If your Photon is being powered through the barrel jack, connect to the VIN pin.
  • If your Photon is being powered through the Micro-USB port, connect to the V-USB pin.
Here are the steps to connect the ultrasonic sensor to your Photon using the breadboard:
  1. 1.
    Insert the 4 pins of the ultrasonic sensor into different terminal strip rows on the breadboard. (Different terminal strip rows have different row numbers.) It is recommended to insert the sensor on the left half of the breadboard with the transmitter and receiver facing away from the Photon.
  2. 2.
    Plug one end of a jumper wire into the same terminal strip row as the sensor's VCC pin. Plug the other end of this jumper wire into either the VIN pin or V-USB pin on the Photon circuit board (or to a positive power rail on the breadboard that is connected to VIN or V-USB). If your Photon is being powered through the barrel jack, connect to the VIN pin. Otherwise, if your Photon is being powered through the Micro-USB port, connect to the V-USB pin.
  3. 3.
    Plug one end of a second jumper wire into the same terminal strip row as the sensor's Trig pin. Plug the other end of this jumper wire into an I/O pin on the Photon circuit board.
  4. 4.
    Plug one end of a third jumper wire into the same terminal strip row as the sensor's Echo pin. Plug the other end of this jumper wire into an I/O pin on the Photon circuit board.
  5. 5.
    Plug one end of a fourth jumper wire into the same terminal strip row as the sensor's GND pin. Plug the other end of this jumper wire into a pin hole connected to GND: either plug it into a negative power rail (which is connected to GND via a different jumper wire), or plug it directly into a GND pin on the Photon circuit board.

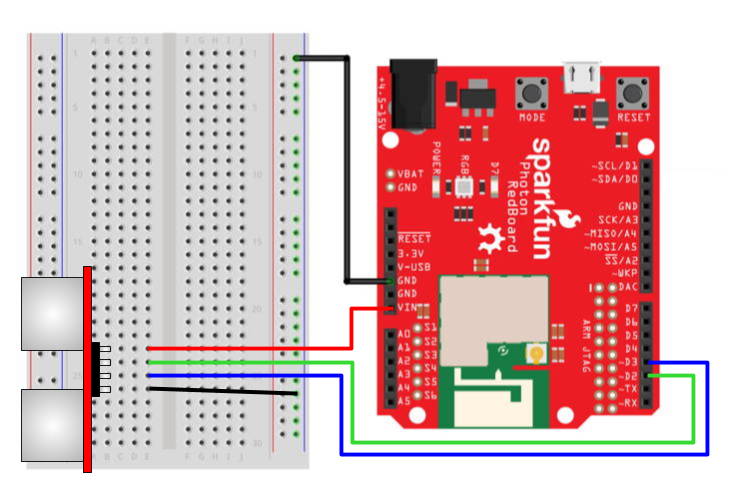

Here's a wiring diagram showing a possible way to connect the ultrasonic sensor:
Keep in mind that your connection can look different than this example diagram:
  • Your ultrasonic sensor pins could be inserted into different row numbers. (The example connects the sensor pins to rows 23-26 on the left side of the breadboard.)
  • Your motion sensor pins could be inserted into a different column of the breadboard. (The example connects the sensor pins into column B of the terminal strip rows.)
  • Your sensor's VCC pin could connect (through a jumper wire) to either the VIN pin or V-USB pin (or to a positive power rail that's connected to one of these pins). (The example connects directly to the VIN pin.)
  • Your sensor's Trig pin could connect (through a jumper wire) to a different I/O pin. (The example connects to the D2 pin.)
  • Your sensor's Echo pin could connect (through a jumper wire) to a different I/O pin. (The example connects to the D3 pin.)
  • Your sensor's GND pin could connect (through a jumper wire) to either to a GND pin or to a negative power rail connected to a GND pin. (There are three available GND pins.)

How to Code Sensor

The basic steps to use an ultrasonic sensor in your app code are:
  1. 1.
    Declare global variables to store the I/O pin numbers for the ultrasonic sensor.
  2. 2.
    Set the pin modes for the sensor in the setup() function, and turn off the transmitter.
  3. 3.
    Use a custom function that will measure and return the distance to the nearest object.

Global Variables

You should declare global variables to store the I/O pin numbers that the ultrasonic sensor's transmitter (Trig) and receiver (Echo) are connected to. This will make it easier to understand your code (and easier to modify the code if you were to connect the trimpot to a different pin number).
Add this code (modify if necessary) before the setup() function:
int TRIG_PIN = D2;
int ECHO_PIN = D3;
Each line of code does 3 things (in order):
  1. 1.
    It declares a data type for the variable's value. In this case, int stands for integer (whole number). Photon pin numbers are always treated as int values (even though they have letters).
  2. 2.
    It declares the variable's name. In this example, the variables will be called TRIG_PIN (transmitter) and ECHO_PIN (receiver). You can change the variable names, but choose names that will make sense to anyone reading the code. You will need to make sure the same variable names are listed in the custom function which measures the distance to the nearest object.
  3. 3.
    It assigns a value to the variable. In this example, the variables will be equal to D2 and D3. If necessary, modify these values to match the I/O pins that your sensor pins are connected to.

Set Pin Modes & Turn Off

You need to set the pin modes for the sensor's transmitter (Trig) and receiver (Echo). Then you need turn off the sensor's transmitter until you're ready to actually take a distance measurement.
Add this code (modify if necessary) within the setup() function:
pinMode(TRIG_PIN, OUTPUT);
pinMode(ECHO_PIN, INPUT);
digitalWrite(TRIG_PIN, LOW);
The pinMode() method requires two parameters inside its parentheses (in this order):
  1. 1.
    The I/O pin number, which can be the actual pin number (such as: D2, etc.) or a variable that stores a pin number. In this example, the variables named TRIG_PIN and ECHO_PIN are listed. If necessary, change these to match the variable names for your sensor's pins.
  2. 2.
    The mode value, which will be OUTPUT for the sensor's transmitter pin and INPUT for the sensor's receiver pin.
The digitalWrite() method requires two parameters inside its parentheses (in this order):
  1. 1.
    The I/O pin number, which can be the actual pin number (such as: D2, etc.) or a variable that stores a pin number. In this example, the variable named TRIG_PIN is listed. If necessary, change this to match the variable name for your sensor's transmitter pin.
  2. 2.
    The signal value, which can be HIGH or LOW. Your Photon uses this value to send an electrical signal through the pin: HIGH is a signal of 3.3 volts which represents "on," while LOW is a signal of 0 volts which represents "off." In this case, LOW is being used to turn off the transmitter.

Add Function to Measure Distance

You'll add a custom function named measureDistance() than can be called to measure the distance from the ultrasonic sensor to the nearest object. The function will return the distance as a float value (decimal number).
Add this measureDistance() function after the loop() function:
float measureDistance() {
​
// HC-SR04 ultrasonic sensor
unsigned long start_time, end_time, pulse_time;
​
// trigger ultrasonic signal for 10 microseconds
digitalWrite(TRIG_PIN, HIGH);
delayMicroseconds(10);
digitalWrite(TRIG_PIN, LOW);
​
// wait until echo received
while (digitalRead(ECHO_PIN) == 0);
​
// measure how long echo lasts (pulse time)
start_time = micros(); // get start time (in microseconds)
while (digitalRead(ECHO_PIN) == 1); // wait until echo ends
end_time = micros(); // get end time
pulse_time = end_time - start_time; // subtract to get duration
​
// pulse time of 23200 represents maximum distance for this sensor
if (pulse_time > 23200) pulse_time = 23200;
​
// calculate distance to object using pulse time
float dist_in = pulse_time / 148.0; // inches
float dist_cm = pulse_time / 58.0; // centimeters
​
delay(60); // need 60 ms delay between ultrasonic readings
return dist_in; // or can return dist_cm
}
Possible modifications to this custom function:
  • If you used different names for the global variables representing the transmitter (TRIG_PIN) and receiver (ECHO_PIN), then be sure to modify this function to use those variable names instead.
  • If you want the function to return the distance measurement in units of centimeters (instead of inches), then modify the return statement towards the end of the function.

Call Function to Measure Distance

Each time you need a new distance measurement, you'll need to call the measureDistance() function.
To call this custom function, add this code within the loop() function (or within another custom function):
float sensorDist = measureDistance();
// add code to do something with sensorDist
A local variable named sensorDist is declared that will have a data type of float (decimal number). This variable will be made equal to the value returned by the measureDistance() function.
You'll need add code to do something with the distance measurement stored in sensorDist. It's common to use an if statement (or an if-else statement) to perform certain actions based on whether the distance is less than (or greater than) a specific value.
For example, this code example will turn on an LED light if the distance is less than 6 inches (otherwise it will turn the LED off):
float sensorDist = measureDistance();
if (sensorDist < 6) {
digitalWrite(LED, HIGH);
} else {
digitalWrite(LED, LOW);
}

TEST ULTRASONIC SENSOR

A good way to test your ultrasonic sensor is to connect the Micro OLED display to your Photon, so you can show the value of sensorDist on the OLED screen to verify the sensor is working accurately.
For example, once you've added the other necessary code for the Micro OLED, you could add this code within the loop() function:
float sensorDist = measureDistance();
oled.clear(PAGE);
oled.setFontType(2);
oled.setCursor(0, 0);
oled.println(sensorDist, 1); // print to 1 decimal place
oled.display();
