Trimpot Dial

Your Photon kit includes a "trimpot" (trimmable potentiometer) that can be rotated and used as a dial. A potentiometer is a variable resistor that can be adjusted by sliding, rotating, or another type of physical interaction. Potentiometers are used in various devices such as: joysticks and game controllers, control knobs and sliders, dimmer switches for lights, volume knobs for stereos, etc.

Trimpot Dial (side view)

The trimpot dial can be rotated clockwise or counterclockwise approximately 270° (it does NOT rotate all the way around). The position of the dial can be measured and used as an input for a value that has a range from minimum to maximum.

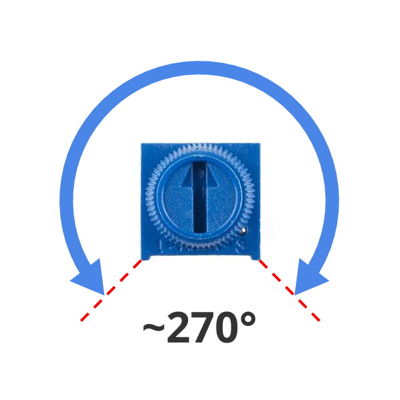

Trimpot Dial (top view): Maximum Range of Rotation

How to Connect Trimpot

The trimpot dial has 3 metal legs that will be inserted into pin holes on the breadboard.

To connect a trimpot dial to your Photon using the breadboard, you will need:

• Trimpot

• 3 jumper wires (use different colors to help identify them)

Trimpot	Photon Pin
Outer Leg (pick one)	3.3V
Middle Leg	any analog I/O pin (A0, A1, A2, A3, A4, A5)
Other Outer Leg	GND

3.3V MAXIMUM: Analog inputs, such as the trimpot, require 3.3V of power for accurate measurements. Connect the trimpot to the 3.3V pin on your Photon, or connect it to a positive power rail that's connected to the 3.3V pin.

TWIN PINS: Analog pins A2, A3, A4, and A5 are each represented by two pins on the Photon board. The duplicate pins are labeled as: SS/A2, SCK/A3, MISO/A4, MOSI/A5. If you use one of these pins, you cannot use its twin at the same time.

Here are the steps to connect the trimpot to your Photon using the breadboard:

1. Insert the three metal legs of the trimpot into different terminal strip rows on the breadboard. (Different terminal strip rows have different row numbers.)

2. Plug one end of a jumper wire into the same terminal strip row as an outer leg of the trimpot. Plug the other end of this jumper wire into the 3.3V pin on the Photon circuit board (or plug it into a positive power rail that's connected to the 3.3V pin via a different jumper wire).

3. Plug one end of a second jumper wire into the same terminal strip row as the middle leg of the trimpot. Plug the other end of this jumper wire into any analog I/O pin on the Photon circuit board.

4. Plug one end of the third jumper wire into the same terminal strip row as the other outer leg of the trimpot. Plug the other end of this jumper wire into a pin hole connected to GND: either plug it into a negative power rail (which is connected to GND via a different jumper wire), or plug it directly into a GND pin on the Photon circuit board.

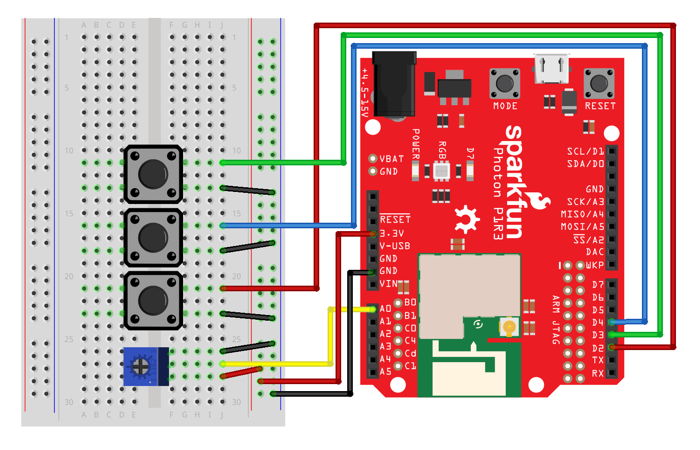

Here's a wiring diagram showing a possible way to connect a trimpot (ignore the wiring for the three push buttons):

Keep in mind that your connection can look different than this example diagram:

• Your trimpot legs could be inserted into different row numbers. (The example connects the trimpot legs to rows 26-28 on the right side of the breadboard).

• Your trimpot legs could be inserted into a different column of the breadboard. (The example connects the trimpot legs into column F of the terminal strip rows).

• Your trimpot could connect (through a jumper wire) to a different analog I/O pin. (The example connects the trimpot to the A0 pin.)

• Your trimpot could connect (through a jumper wire) either directly to the 3.3V pin or to a positive power rail on the breadboard that's connected to the 3.3V pin.

• Your trimpot could connect (through a jumper wire) either directly to a GND pin or to a negative power rail that's connect to a GND pin. (There are three available GND pins.)

How to Code Trimpot

The basic steps to control a trimpot dial in your app code are:

1. Declare a global variable to store the I/O pin number for the trimpot.

2. Use the analogRead() method to measure the trimpot dial position.

3. OPTIONAL: Use the map() method to convert the trimpot reading to a custom range.

Global Variable

You should declare a global variable to store the I/O pin number that the trimpot is connected to. This will make it easier to understand your code (and easier to modify the code if you were to connect the trimpot to a different pin number).

Add this code statement (modify if necessary) before the setup() function:

int trimpot = A0;

This line of code does 3 things (in order):

1. It declares a data type for the variable's value. In this case, int stands for integer (whole number). Photon pin numbers are always treated as int values (even though they have letters).

2. It declares the variable's name. In this example, the variable will be called trimpot. You can change the variable name, but choose a name that will make sense to anyone reading the code.

3. It assigns a value to the variable. In this example, the variable's value will be equal to A0. If necessary, modify this value to match the actual I/O pin that your speaker is connected to.

PIN MODE: Analog inputs do NOT need to have their pin mode set within the setup() function. Their pin mode gets automatically set when the analogRead() method is used.

Read Trimpot

The analogRead() method is used to read the trimpot, which indicates the trimpot dial position.

Add this code (modify as necessary) to your app within the loop() function or a custom function:

int trimpotRead = analogRead(trimpot);
// add code to do something with trimpotRead

A local variable named trimpotRead is declared that will have a data type of int (integer). This variable is made equal to whatever value is returned by the analogRead() method. You can change the name of this variable, but it will make sense if it's similar to the variable name used for the trimpot pin number.

The analogRead() method requires one parameter insides its parentheses:

1. The I/O pin number, which can be the actual pin number (such as: A0, etc.) or a variable that stores a pin number. In this example, the variable named trimpot is listed. If necessary, change this to match the variable name for your trimpot's pin number.

The analogRead() method will return an integer (whole number) value ranging from 0-4095:

• If the dial is rotated all the way to the left (counterclockwise), the value will be 0.

• If the dial is rotated all the way to the right (clockwise), the value will be 4095.

• If the dial is rotated somewhere in-between, the value will be proportional to the dial's position. For example, if the dial is rotated exactly halfway, the value will be 2048.

You'll need to add code to do something with the reading stored as trimpotRead. For example, this might be an if-else statement to perform certain actions based on whether trimpotRead is greater than (or less than) one or more specific values.

Map Value to Custom Range

In many cases, it may not be convenient to work with a value that ranges from 0-4095. Instead, it might be easier to have a value within a smaller custom range (such as: 0-10, 0-100, etc.) that makes more sense for your particular task.

The map() function can be used to convert a value from its original range (such as 0-4095) into a new range of your choice. You decide the minimum and maximum values for the new range.

For example, if a trimpot dial were being used to control the brightness of an LED light, you might want the trimpot to return a value between 0-255 because the analogWrite() method used to set the brightness of an LED requires a value in this range.

Add this code (modify as necessary) to your app within the loop() function or a custom function:

int trimpotRead = analogRead(trimpot);
int minValue = 0;
int maxValue = 255;
int trimpotValue = round(map(trimpotRead, 0, 4095, minValue, maxValue + 1));
// add code to do something with trimpotValue

As necessary, change the values assigned to minValue and maxValue to whatever numbers you want to use for your custom range. Also, the minValue doesn't have to be zero.

Be sure to add code to do something with trimpotValue. For example, this might be an if-else statement to perform certain actions based on whether trimpotValue is greater than (or less than) one or more specific values.

NOTE: The code uses the round() method to round the mapped value to the nearest integer because the map() method returns a float (decimal value). Also, inside the map() method, the code intentionally adds 1 to the maxValue because otherwise it is very difficult to get the maximum value even if the trimpot dial is turned clockwise all the way.

CUSTOM FUNCTION TO READ ANALOG SENSORS

You could incorporate this code into a custom function called checkSensor() that will read an analog sensor and return a value mapped to a custom range:

int checkSensor(int pin, int minValue, int maxValue) {
    int sensorRead = analogRead(pin);
    int mapValue = round(map(sensorRead, 0, 4095, minValue, maxValue + 1));
    return mapValue;
}

When calling the checkSensor() function within the loop() function, you will need to include values for these 3 parameters (in order) inside its parentheses:

1. the sensor's pin number, which will most likely be a variable that stores the pin number

2. the desired minimum value for the range, which should be an integer (whole number)

3. the desired maximum value for the range, which should be an integer (whole number)

The checkSensor() function will return the mapped sensor value as an integer, which your code should store in a variable of data type int.

For example, to call the checkSensor() function within the loop() function:

int trimpotValue = checkSensor(trimpot, 0, 255);
// add code to do something with trimpotValue

The checkSensor() function could also be used to read other analog sensors, such as a light sensor:

int lightValue = checkSensor(light, 0, 100);
// add code to do something with lightValue
