C-4 Drive for Specific Distance

Next, you'll code an app that uses the wheel encoders to make your robot drive straight for a specific distance (measured in inches).

Using Wheel Encoder Counts for Driving and Pivoting

The ring magnet attached to each motor shaft has 4 pairs of N-S poles, similar to the diagram below.

As the motor shaft and its attached ring magnet complete one full rotation, the wheel encoder detects 4 changes (or "ticks") in the magnetic field as the magnetic poles pass by the sensor. Each wheel encoder keeps track of the total number of "ticks" it has counted.

However, each rotation of the motor shaft only turns the wheel a certain number of degrees. The RedBot motors have a gearbox ratio of 48:1, which means it actually takes 48 rotations of the motor shaft to make the wheel complete one full revolution.

We can use this information to calculate how many "ticks" counted by the wheel encoder would represent one revolution of the wheel:

4 ticks per motor rotation × 48 motor rotations per wheel revolution = 192 ticks per wheel revolution

Based on the size of the RedBot's wheels, we can also calculate the distance that the RedBot travels during one wheel revolution. The distance is equal to the circumference of the wheel (i.e., the distance around the outer edge of the wheel). The circumference of a circle is its diameter multiplied by pi (approximately 3.14).

Since the RedBot's wheels have a diameter of 65 mm (2.56 inches), the distance traveled per wheel revolution is:

C = 𝛑 × d = 3.14 × 2.56 inches = 8.04 inches per wheel revolution

So for your RedBot's wheel encoders, the following is true:

192 ticks counted by wheel encoder = 1 wheel revolution = 8.04 inches traveled

By keeping track of the total number of magnetic "ticks" counted for each motor, you can use the wheel encoders to perform several useful robot behaviors:

1. Drive in a straight line by making small adjustments in the individual motor powers applied to the left and right motors, to make sure they rotate at the same rate (which is necessary for straight driving).

2. Drive for a specific distance by calculating how far the wheels have traveled while driving. (This is typically combined with adjusting the left and right motor powers to drive straight.)

3. Pivot (or turn) by a specific angle by calculating how far the wheels have traveled while pivoting (or turning) in a circle. This can be used for pivoting on both wheels or turning on one wheel.

Create New App

Open your Arduino code editor, and create a new app template.

Add a block comment at the beginning of the app code to identify your new app:

/*
Drive Distance Test
Team Info
Teacher - Class Period
*/

Rename App

Rename the the new app as: drive_distance_test

If you need a reminder, here are instructions for how to rename an app.

Include RedBot Library

Follow the steps to include the SparkFun RedBot Library in your app. (You don't need to add the library to your code editor again — just include the library in this new app.)

Create Objects for Motors, Button, and Encoders

Your app will need to create new objects (as global variables) to represent the robot's motors, button, and wheel encoders. Add this code before the setup() function:

RedBotMotors motors;
RedBotButton button;
RedBotEncoder encoder(A2, 10);

Add Code for "Press to Start"

Create global variables for the LED pin and speaker pin by adding this code before the setup() function:

int LED = 13;
int speaker = 9;

Set the pin modes for the LED and speaker by adding this code within the setup() function:

    pinMode(LED, OUTPUT);
    pinMode(speaker, OUTPUT);

Check whether the button has been pressed by adding this code within the loop() function:

  if (button.read() == true) {
    // code to perform when button is pressed
    digitalWrite(LED, HIGH);
    tone(speaker, 2000);
    delay(200);
    digitalWrite(LED, LOW);
    noTone(speaker);
    // add code for other robot actions (driving, etc.)

  }

Add Custom Function to Drive Specific Distance

You'll add a custom function named driveDistance() which contains code to make your robot drive in a straight line for a specified distance by using the wheel encoders.

Add this custom function after the loop() function (i.e., after its closing curly brace):

void driveDistance(float distance) {

    // use wheel encoders to drive straight for specified distance at specified power

    // set initial power for left and right motors
    int leftPower = 150;
    int rightPower = leftPower;

    // amount to offset motor powers to drive straight
    int offset = 5;

    // if negative distance, make motor powers & offset also negative
    if (distance < 0) {
        leftPower *= -1;
        rightPower *= -1;
        offset *= -1;
    }

    // use correction to improve distance accuracy
    // adjust correction value based on test results
    float correction = -1.0; // need decimal point for float value
    if (distance > 0) distance += correction;
    else if (distance < 0) distance -= correction;

    // variables for tracking wheel encoder counts
    long leftCount = 0;
    long rightCount = 0;
    long prevLeftCount = 0;
    long prevRightCount = 0;
    long leftDiff, rightDiff;

    // RedBot values based on encoders, motors & wheels
    float countsPerRev = 192.0; // 192 encoder ticks per wheel revolution
    float wheelDiam = 2.56;  // wheel diameter = 65 mm = 2.56 in
    float wheelCirc = PI * wheelDiam; // wheel circumference = 3.14 x 2.56 in = 8.04 in

    // based on distance, calculate number of wheel revolutions
    float numRev = distance / wheelCirc;

    // calculate target encoder count
    float targetCount = numRev * countsPerRev;

    // reset encoder counters and start driving
    encoder.clearEnc(BOTH);
    delay(100);
    motors.leftDrive(leftPower);
    motors.rightDrive(rightPower);

    // keeps looping while right encoder count less than target count
    while (abs(rightCount) < abs(targetCount)) {

        // get current wheel encoder counts
        leftCount = encoder.getTicks(LEFT);
        rightCount = encoder.getTicks(RIGHT);

        // calculate increase in count from previous reading
        leftDiff = abs(leftCount - prevLeftCount);
        rightDiff = abs(rightCount - prevRightCount);

        // store current counts as "previous" counts for next reading
        prevLeftCount = leftCount;
        prevRightCount = rightCount;

        // adjust left & right motor powers to keep counts similar (drive straight)

        // if left rotated more than right, slow down left & speed up right
        if (leftDiff > rightDiff) {
            leftPower = leftPower - offset;
            rightPower = rightPower + offset;
        }
        // else if right rotated more than left, speed up left & slow down right
        else if (leftDiff < rightDiff) {
            leftPower = leftPower + offset;
            rightPower = rightPower - offset;
        }

        // apply adjusted motor powers
        motors.leftDrive(leftPower);
        motors.rightDrive(rightPower);
        delay(10);  // short delay before next reading
    }

    // target count reached
    motors.brake(); // or use: motors.stop()
    delay(500); // brief delay to wait for complete stop
}

Call Custom Function in Loop

Remember that the code within a custom function is only performed if the custom function is "called" by its name within another function, such as the setup() function or loop() function.

When calling the driveDistance() custom function, you must pass in a value for the distance (inches) by listing a number inside the parentheses after the function's name.

You'll use the driveDistance() function to make your robot drive straight for 36 inches. Add this code statement within the if statement in the loop() function (after the noTone() statement):

driveDistance(36);

By listing the name of the custom function, the custom function is "called" — so the code within that custom function will be performed one time. By listing 36 inside the parentheses, the robot will drive straight for 36 inches.

The driveDistance() function could also be used to make your robot drive backward — just pass in a negative number when calling the function.

Upload App to Robot

Follow the steps to connect your robot to your computer, and upload the app.

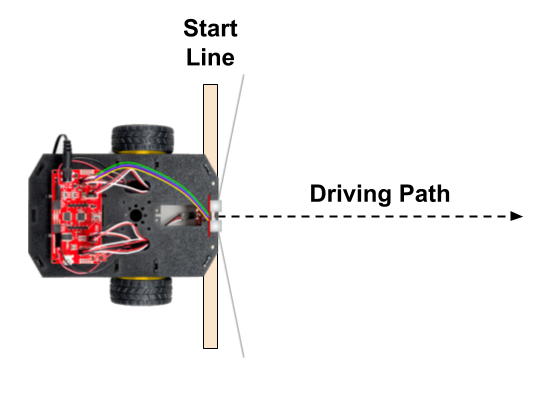

Unplug the USB cable from the robot, and place the robot on the floor. Create a "start line" on the floor (using masking tape, etc.). Line up the front edge of the robot with the front edge of the start line. Be sure a path of at least 3 feet in front of the robot is clear of any obstacles.

Press the D12 button on your robot's circuit board. Your robot should beep and then drive forward in a straight line for 36 inches.

Then measure the distance from the front of the start line to the front of the robot, in order to measure the actual distance traveled and see how close it is to 36 inches.

Line up the robot with the start line, and test again. Repeat the test several times to determine the average distance.

The driveDistance() function contains a local variable named correction which has been set to -1.0 because during our testing, our robot was driving about 1 inch too far when using a motor power of 150. The reason for this is because it takes a small amount of time for the robot to apply the brakes and come to a complete stop.

If your robot is driving too far (or not far enough), you'll want to change the value assigned to correction in the driveDistance() function:

• If your robot is driving too far, subtract from the correction value. For example, if your robot is driving 0.5 inch too far (36.5 inches), subtract 0.5 from correction, changing it from -1.0 to -1.5.

• If your robot is not driving far enough, add to the correction value. For example, if your robot is driving 0.5 inch too little (35.5 inches), add 0.5 to correction, changing it from -1.0 to -0.5.

If you do adjust the correction value, upload the modified app to your robot, and test again to ensure the driving distance is accurate (within 0.5 inch of the intended distance).
