Detecting Lines
These custom functions use the IR line sensors:
followLine()
— follow a line automaticallyavoidLine()
— avoid a line automatically (acts like border to contain robot)countLine()
— drive straight while counting lines crossed and stop at specific line numberfollowCountLine()
— follow a line while counting lines crossed and stop at specific line number
followLine()
A custom function named followLine()
uses the IR line sensors to make your robot follow a line. Normally, the line must form a closed path.
In order to work, the followLine()
function must be continuously called by the loop()
function (or continuously called by a loop within another function).
The robot's goal during line following is to try stay centered on the line as the robot drives. To do this, the robot must check all three IR line sensors.
If the robot is trying to follow a line, there are 3 possible situations at any given point:
If only the center IR line sensor detects the line, this means the robot is centered on the line. In this situation, the robot should drive straight to keep following the line.
If only the left IR sensor detects the line, this means the line has started to curve to the left. In this situation, the robot should adjust its motors to curve left and keep following the line.
If only the right IR line sensor detects the line, this means the line has started to curve to the right. In this situation, the robot should adjust its motors to curve right and keep following the line.
The followLine()
function requires these objects as part of your global variables before the setup()
function:
Add the followLine()
custom function after the loop()
function:
Sometimes it can be challenging to get your robot to follow a line consistently. Here are some troubleshooting tips:
You may need to change the value for
power
. A lower motor power (such as100
) generally works better for line following. However, you may need to try different powers to find the value that works best.You may need to change the value for
powerShift
, which is used to adjust the left and right motor powers in order to steer the robot back towards the line.You may need to change the value for
lineThreshold
based on your line color. Use the serial monitor to view IR sensor measurements for your line. Be sure there is sufficient difference between the readings for the line vs. the surface.You may need to change the
delay()
value at the end of the function to adjust the sensitivity. This delay determines how long the robot is allowed to drive before the IR sensors are checked again (and the motor powers are potentially adjusted again).You may need to try different types of lines and surfaces to find the right combination that works effectively. You need high contrast between the line and the surface: either a dark line on a light surface (or the opposite).
You may need to adjust the line path. Lines that have sharp angles or turns are difficult for the robot to follow closely.
If your robot was previously successful at line following but starts to have problems, you may need to replace the robot's batteries. As the battery power depletes, the IR sensors will stop working properly (even though there might be enough power for the motors to still work).
avoidLine()
A custom function named avoidLine()
uses the IR line sensors to make your robot avoid a line. The line acts as a border to keep the robot inside (or outside) an area or path.
In order to work, the avoidLine()
function must be continuously called by the loop()
function (or continuously called by a loop within another function).
The robot's goal when avoiding a line is to check for a line as the robot drives and turn away when a line is detected. To do this, the robot can just check the left and right IR line sensors (rather than all three).
If the robot is trying to avoid a line, there are 3 possible situations when a line is detected:
If both the left and right IR line sensors detect the line, this means the robot has "hit" the line head-on. In this situation, the robot should turn around to avoid the line.
If only the left IR sensor detects the line, this means robot has "hit" the line at angle from the left. In this situation, the robot should turn right to avoid the line.
If only the right IR line sensor detects the line, this means robot has "hit" the line at angle from the right. In this situation, the robot should turn left to avoid the line.
The avoidLine()
function generates a random number for the amount of time (in milliseconds) for each turn (pivot) in order to produce variation in the robot's new direction. The ranges for the random numbers were selected to make the pivot times close to a 90° turn or a 180° turn. However, you can modify the function to instead use fixed pivot times (such as 650 ms for a 90° turn and 1300 ms for a 180° turn).
MINIMUM PIVOT: Be sure to make the robot turn at least 90° whenever it detects a line. If the robot were to "hit" a line at a nearly perpendicular angle (almost head-on), then a pivot of less than 90° might not be enough to turn away from the line.
The avoidLine()
function requires these objects as part of your global variables before the setup()
function:
Add the avoidLine()
custom function after the loop()
function:
countLine()
A custom function named countLine()

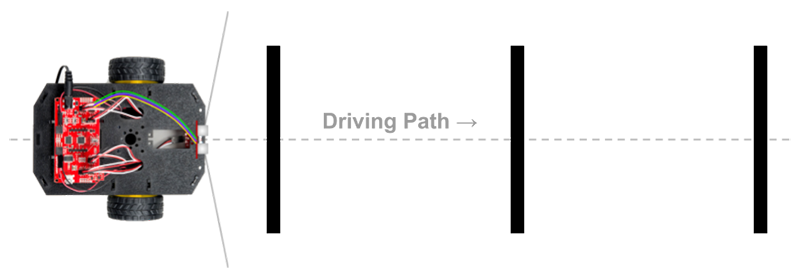

uses the wheel encoders to make the robot drive straight while also using the IR line sensors to count line markers the robot crosses. The robot will stop driving when it reaches a specific line number. You can then make the robot turn and start driving in a new direction.
The countLine()
function requires two other custom functions, in order to work. Be sure to add these two functions after the loop()
function:
driveStraight()
function — used to make the robot drive straightdriveDistance()
function — used to center the robot on the target line marker
Once your robot reaches a specific line marker using the countLine()
function, you'll usually turn the robot to start driving in a new direction. Typically, you'll pivot the robot 90° right, 90° left, or 180° around. So you'll also want to add the pivotAngle()
custom function after the loop()
function.
The countLine()
function requires these objects as part of your global variables before the setup()
function:
Add the countLine()
custom function after the loop()
function:
The countLine()
function uses a while
loop to keep driving straight and counting lines as long as the total number of detected lines is less than the target number.
Inside this while
loop, the value of a variable named lineDetected
is toggled back and forth between true
and false
. The reason for this is to ensure accurate line counting, so the code doesn't accidentally count the same line more than once:
Once a line has been detected, the code will increase the line count and immediately start checking for no line (i.e., giving the robot time to drive past the current line).
Once it detects that the robot has completely crossed the current line (i.e., once no line is detected), the code will start checking again for a new line.
Once the line count reaches the target number, the while
loop ends. The robot's motors are braked, and then the robot drives forward a short distance (3.5 inches) to center itself on the target line.
GRID-LIKE LINE MARKER PATTERNS
If necessary, you can also place line markers in a "grid-like" pattern, in order to allow your robot to travel between different locations. For example, this diagram shows a series of line markers with a starting location plus a set of locations labeled with letters A-I:
Imagine this diagram represents a top-down view of a grocery store layout with three aisles of food (i.e., the three vertical columns of markers). The top horizontal row (i.e., with the "plus" markers) is used to travel from one aisle to another. How could the RedBot travel from the starting location to location E?
followCountLine()
A custom function named followCountLine()
uses IR line sensors to make the robot follow a line while also counting line markers the robot crosses. The robot will stop driving when it reaches a specific line number. You can then make the robot turn and start following a new line.
In this case, your line path doesn't necessarily have to form a single, closed path. You can create complex line patterns with different branching paths. Each individual path can be straight, curved, or form a loop. You can also add lines markers for specific destinations along a path. There are two requirements:
Lines should always cross each other at perpendicular angles (90° right angles).
The end of each path should have a perpendicular line marker.
The followCountLine()
function requires two other custom functions, in order to work. Be sure to add these two functions after the loop()
function:
followLine()
function — used to make the robot follow the current linedriveDistance()
function — used to center the robot on the target line marker
Once your robot reaches a specific line marker using the followCountLine()
function, you'll usually turn the robot to start following a new line. Typically, you'll pivot the robot 90° right, 90° left, or 180° around. So you'll also want to add the pivotAngle()
custom function after the loop()
function.
The followCountLine()
function requires these objects as part of your global variables before the setup()
function:
Add the followCountLine()
custom function after the loop()
function:
